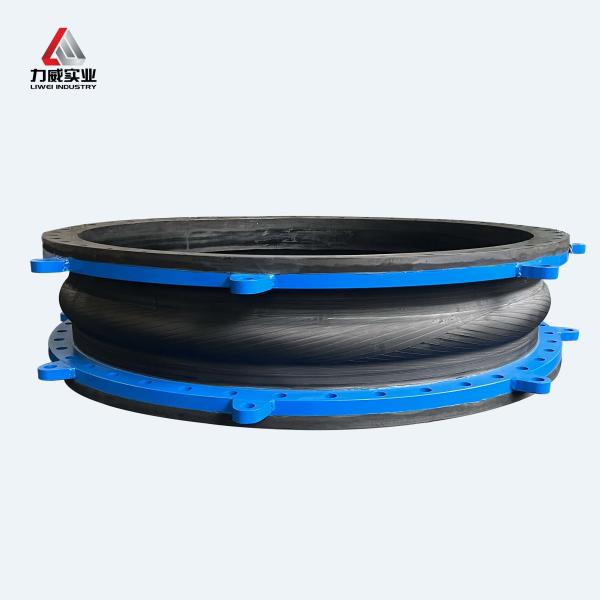

Single sphere flexible rubber joint description:
The Hand winding Single Sphere Flexible Rubber Joint adopts a
streamlined, large deflection design, does not affect the flow rate
in the pipeline transportation process, plays a shock absorption,
noise reduction, to meet the characteristics of multi-directional
displacement. Provides many benefits for various plumbing systems.
The product is designed to fit the size range DN15 to DN4000 and is
suitable for a variety of pipe diameters. And there are extended
range options that can handle temperatures as low as -30°C and up
to 150°C. To ensure suitability for almost any application
requirement.
Single sphere flexible rubber joint advantages:
Established for 36 years, our technical personnel have rich
experience and expertise in the industry.
Our rubber joints are the drafting unit of national standards, and
the main process is molding.
High demand production, high quality product assurance.
We have a professional rubber mixing center.Real materials can be
seen.
Our company participated in the drafting of the national standard
GB/T26121-2010 of "Flexible Rubber Joints".
Apply for a utility model patent flexible rubberjoint Patent
number: 032418558.
Free samples are provided.
Single sphere flexible rubber joint applications:
- Petroleum industry
- Mining industry
- Metallurgical manufacturing industry
- Environmental protection industry
- Water supply and drainage industry
- Paper industry
Customization:
The Liwei rubber flexible single ball joint has unparalleled
performance in vibration reduction and flexibility. Each single
spherical flexible rubber joint is carefully crafted to meet
various industrial needs and adapt to a wide range of motion and
system requirements. Our single ball rubber joint design provides
reliable and long-lasting connections, ensuring seamless operation
and longevity. Customize your order with a range of materials such
as NR, NBR, SBR, EPDM, and select flange colors to meet your
specific application requirements. If you have any other needs, you
can contact us. We have a professional technical team for design
and production.
Technical Parameters:
Diameter
DN | Length
mm | Axis displacement | Radial
displacement | Deflexion
displacement |
| TYPE 1 | TYPE 2 |
| mm | inch | Extension | Compression | Extension | Comgression | TYPE 1 | TYPE 2 | TYPE1 | TYPF 2 |
| 32 | 11/4" | 90 | 6 | 10 | | | 9 | | ±7.5° | |
| 40 | 11/2” | 95 | 7 | 10 | | | 9 | | ±7.5° | |
| 50 | 2" | 105 | 7 | 10 | | | 10 | | ±7.5° | |
| 65 | 21/2” | 115 | 7 | 13 | | | 11 | | ±7.5° | |
| 80 | 3" | 135 | 8 | 15 | | | 12 | | ±7.5° | |
| 100 | 4" | 150 | 10 | 19 | | | 13 | | ±7.5° | |
| 125 | 5" | 165 | 12 | 19 | | | 13 | | ±7.5° | |
| 150 | 6" | 180 | 12 | 20 | | | 14 | | ±7.5° | |
| 200 | 8" | 210 | 16 | 25 | 30 | 35 | 22 | 25 | ±7.5° | ±10° |
| 250 | 10" | 230 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 300 | 12" | 245 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 350 | 14" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 400 | 16" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 450 | 18" | 255 | 16 | 25 | 36 | 47 | 22 | 30 | ±7.5° | ±12° |
| 500 | 20" | 255 | 16 | 25 | 36 | 48 | 22 | 30 | ±7.5° | ±12° |
| 600 | 24" | 260 | 16 | 25 | 40 | 50 | 22 | 33 | ±7.5° | ±12° |
| 700 | 28" | 260 | 16 | 25 | 40 | 55 | 22 | 33 | ±7.5° | ±12° |
| 750 | 30" | 260 | | | 40 | 55 | | 33 | | ±12° |
| 800 | 32" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 900 | 36" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 1000 | 40" | 260 | 16 | 25 | 45 | 60 | 22 | 35 | ±7.5° | ±12° |
| 1100 | 44" | 300 | | | 45 | 60 | | 35 | ±7.5° | ±12° |
| 1200 | 48" | 300 | 16 | 25 | 50 | 60 | 24 | 38 | ±7.5° | ±10° |
| 1300 | 52" | 300 | | | 50 | 60 | | 38 | | ±10° |
| 1400 | 56" | 350 | | | 50 | 70 | | 40 | | ±10° |
| 1500 | 60" | 350 | | | 60 | 70 | | 40 | | ±10° |
| 1600 | 64" | 350 | 18 | 25 | 60 | 70 | 24 | 46 | ±7.5° | ±10° |
| 1800 | 72" | 400 | 18 | 25 | 60 | 75 | 24 | 48 | ±7.5° | ±10° |
| 2000 | 80" | 450 | | | 70 | 75 | | 50 | | ±10° |
| 2200 | 88" | 500 | | | 70 | 80 | | 60 | | ±10° |
| 2400 | 96" | 500 | | | 80 | 80 | | 60 | | ±10° |
| 2600 | 104" | 500 | | | 85 | 80 | | 60 | | ±10° |
| 2800 | 112" | 550 | | | 85 | 80 | | 60 | | ±10° |
| 3000 | 120" | 550 | | | 85 | 80 | | 60 | | ±10° |
| • Special size and length can be customized for you. |
Our Services:
- Delivery inspection (pressure test, specification test, material,
quantity, packing).
- The quality is guaranteed for 12 months, supportthird-party
testing.
- Free solutions and drawings can be provided.
- A well-trained and disciplined professional packaging team.
- 24h online service, quick response before and after sales.
- Support online factory inspection
- On-time delivery
- Free samples can be provided
Packing&Shipping:
Packing
Inner: Plastic film, then put into carton case.
Outer: Safe firmed export plywood case, marking on carton case and
wooden case can be customized, or packing as per your requests.
Shipping:
1.We could deliver the goods by international express, such as DHL,
UPS, TNT, EMS, others.
2.You could also choose the transportation according to your
schedule and budget.3.Or you could use your own cargo agent.
FAQ:
Q1: What is the brand name of the Single sphere flexible rubber
joint?
A1: The brand name of the Single sphere flexible rubber joint is
liwei.
Q2: What range of model numbers are available for the Single sphere
flexible rubber joint?
A2: The available model numbers for the Single sphere flexible
rubber joint range from DN25 to DN4000.
Q3: Where is the Single sphere flexible rubber joint manufactured?
A3: The Single sphere flexible rubber joint is manufactured in
Henan, China.
Q4: What certifications does the Single sphere flexible rubber
joint have?
A4: The Single sphere flexible rubber joint has various
certifications including ISO9001, TUV, WRAS, CO, MTC, PL, IV, etc.
Q5: What are the payment terms for purchasing a Single sphere
flexible rubber joint?
A5: The payment terms for purchasing a Single sphere flexible
rubber joint are T/T, Western Union, L/C, D/A, and MoneyGram.
