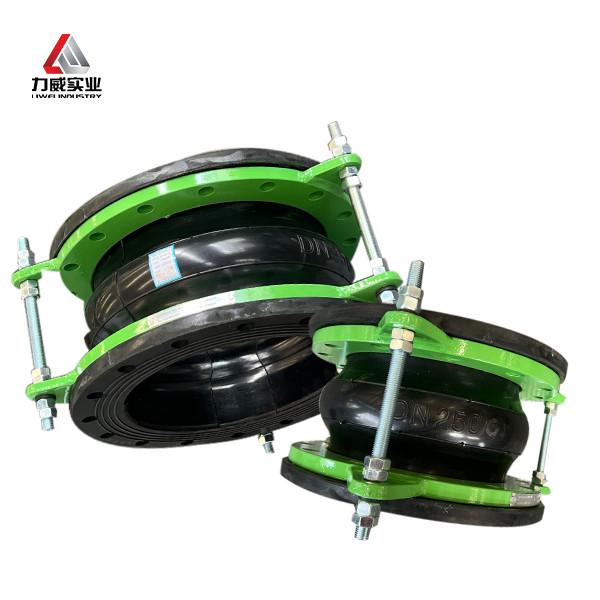

    Rubber Bellows Expansion Joints Excellent Oil Resistance Large Diameter

    Ask Lasest Price
    Brand Name : liwei
    Model Number : dn15-dn4000
    Certification : ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
    Price : Price Negotiable
    Delivery Time : After payment 15-30 working days
    Payment Terms : T/T, Western Union, L/C, D/A, MoneyGram
    Supply Ability : 100000 Pieces per Month
    • Product Details
    • Company Profile

    Rubber Bellows Expansion Joints Excellent Oil Resistance Large Diameter

    Vibration Damping Rubber Joint Excellent Oil Resistance Customizable large diameter

    Product Description:

    The single ball rubber joint, also known as the single ball flexible rubber joint, adopts a streamlined, large deflection design, does not affect the flow rate in the pipeline transportation process, plays a shock absorption, noise reduction, to meet the characteristics of multi-directional displacement. Provides many benefits for various plumbing systems. The product is designed to fit the size range DN15 to DN4000 and is suitable for a variety of pipe diameters. And there are extended range options that can handle temperatures as low as -30°C and up to 150°C. To ensure suitability for almost any application requirement.

    Rubber Bellows Expansion Joints Excellent Oil Resistance Large DiameterRubber Bellows Expansion Joints Excellent Oil Resistance Large Diameter

    Features:

    • Product Name: Single sphere flexible rubber joint
    • Oil Resistance: Excellent
    • Corrosion Resistance: Excellent
    • Installation Type: Horizontal/Vertical
    • Connection Type: Flange/Threaded
    • Applicable Media: Water, Sea Water, Hot Water, Oil, Acid, Alkali, and so on

    Rubber Bellows Expansion Joints Excellent Oil Resistance Large Diameter

    Technical Parameters:

    Diameter

    DN

    Length
    mm
    Axis displacementRadial
    displacement
    Deflexion
    displacement
    TYPE 1TYPE 2
    mminchExtensionCompressionExtensionComgressionTYPE 1TYPE 2TYPE1TYPF 2
    3211/4"906109±7.5°
    4011/2”957109±7.5°
    502"10571010±7.5°
    6521/2”11571311±7.5°
    803"13581512±7.5°
    1004"150101913±7.5°
    1255"165121913±7.5°
    1506"180122014±7.5°
    2008"210162530352225±7.5°±10°
    25010"230162530402225±7.5°±12°
    30012"245162530402225±7.5°±12°
    35014"255162535452230±7.5°±12°
    40016"255162535452230±7.5°±12°
    45018"255162536472230±7.5°±12°
    50020"255162536482230±7.5°±12°
    60024"260162540502233±7.5°±12°
    70028"260162540552233±7.5°±12°
    75030"260405533±12°
    80032"260162545552235±7.5°±12°
    90036"260162545552235±7.5°±12°
    100040"260162545602235±7.5°±12°
    110044"300456035±7.5°±12°
    120048"300162550602438±7.5°±10°
    130052"300506038±10°
    140056"350507040±10°
    150060"350607040±10°
    160064"350182560702446±7.5°±10°
    180072"400182560752448±7.5°±10°
    200080"450707550±10°
    220088"500708060±10°
    240096"500808060±10°
    2600104"500858060±10°
    2800112"550858060±10°
    3000120"550858060±10°
    • Special size and length can be customized for you.

    Applications:

    The rubber single ball joint design is convenient for installation and can effectively absorb the vibration, noise, and thermal expansion or contraction of the pipeline system.

    Widely used in fields such as water treatment, wastewater treatment, heating and air conditioning, fire protection, and industrial processing.

    The minimum order quantity is only one set, and the price is negotiable, suitable for small and large projects.

    Packing and Shipping:

    Packing

    Inner: Plastic film, then put into carton case.

    Outer: Safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

    Shipping:

    1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.

    2.You could also choose the transportation according to your schedule and budget.3.Or you could use your own cargo agent.

    Rubber Bellows Expansion Joints Excellent Oil Resistance Large DiameterRubber Bellows Expansion Joints Excellent Oil Resistance Large Diameter

    FAQ:

    Q1: What is the brand name of the Single sphere flexible rubber joint?

    A1: The brand name of the Single sphere flexible rubber joint is liwei.

    Q2: What range of model numbers do the Single sphere flexible rubber joints come in?

    A2: The Single sphere flexible rubber joints are available in model numbers ranging from DN25 to DN3000.

    Q3: Where are the liwei Single sphere flexible rubber joints manufactured?

    A3: The liwei Single sphere flexible rubber joints are manufactured in Henan, China.

    Q4: What certifications do the liwei Single sphere flexible rubber joints hold?

    A4: The liwei Single sphere flexible rubber joints hold ISO9001, TUV, WRAS, CO, MTC, PL, IV, and other relevant certifications.

    Q5: What are the payment terms for purchasing a liwei Single sphere flexible rubber joint?

    A5: The payment terms for purchasing a liwei Single sphere flexible rubber joint are T/T, Western Union, L/C, D/A, and MoneyGram.

    Q6: How can I negotiate the price for the Single sphere flexible rubber joint?

    A6: The price for the Single sphere flexible rubber joint is negotiable. Interested buyers can contact the supplier directly to discuss pricing.
