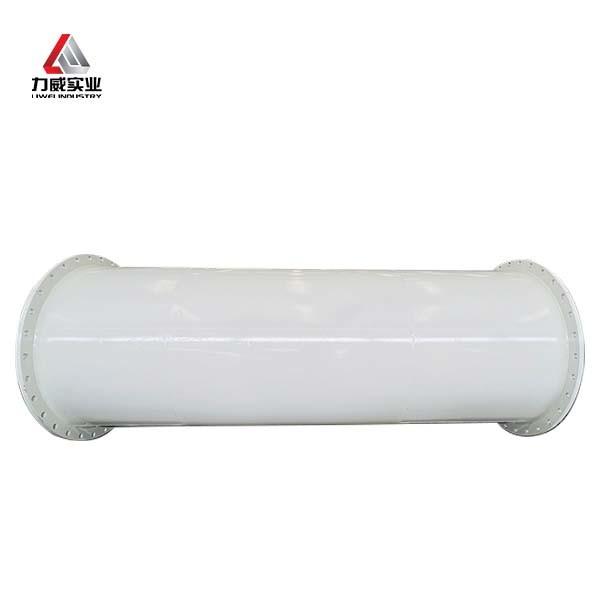

Rubber Lined Pipe Natural or Synthetic Excellent Corrosion
Resistance Up To 300 Psi
Product Description:
The Rubber lined pipe is a comprehensive solution for oil gas
sewage transport challenges, setting the standard in durability,
versatility, and reliability. With its wear-resistant and
corrosion-resistant properties, coupled with excellent ageing
resistance, it stands as a pivotal advancement in pipeline
technology. The adherence to international standards and the
thoughtful material composition make it an ideal choice for a wide
range of industrial applications. Its ease of installation and
long-term cost-effectiveness further underscore its value, making
it a wise investment for any operation looking to optimize its
transport infrastructure.
Rubber lined pipe Advantages:
Full specifications:Easily choose according to your own needs and
never run around again.
Strict quality inspection:We strictly control the quality of our
products and strive to provide satisfactory products to our buyers.
Customizable:cost-effective products,Standard production,Ensure
product quality.
Sufficient inventory:Factory direct sales, sufficient supply of
goods to avoid your worry about insufficient orders.
Customizable:CNC sawing machine cutting, flat cutting surface, can
be customized according to customer needs.
Rubber lined pipe features:
Wear resistance: more than 10 times the service life of ordinary
steel pipes
The lining adopts special formula: strong chemical performance, can
transport strong dirt medium
Low cost: more than 50% cheaper compared with cast iron pipeline
Adaptability: the size of the pipe is not limited, any shape can be
lined with rubber composite
High comprehensive benefit: long life, shorten the replacement and
maintenance cycle, save labor cost
Technical Parameters:
| Name | Outside diameter
Wall thickness | 1D/1.5D Standard Elbow | 3D Standard EIbow | Tee Height | Reducer | Straight |
| R | 90° | 45° | R | 90 | 45° |
| 25 | Φ32×3 | 381 | 90 | 105 | | | | 115 | | 500 |
| 32 | Φ38×3 | 47.6 | 100 | 115 | 130 | 165 | 95 | 125 | 110 | 1000 |
| 40 | Φ45×3 | 57.2 | 110 | 130 | 150 | 185 | 105 | 130 | 110 | 2000 |
| 50 | Φ57×3.5 | 76.2 | 130 | 150 | 180 | 215 | 115 | 140 | 110 | 3000 |
| 65 | Φ76×4 | 95.3 | 150 | 170 | 230 | 265 | 135 | 155 | 110 | 3000 |
| 80 | Φ89×4 | 114.3 | 130 | 190 | 270 | 305 | 155 | 165 | 110 | 5000 |
| 100 | Φ108×4.5 | 152.4 | 160 | 230 | 324 | 380 | 180 | 180 | 120 | 6000 |
| 125 | Φ133×4.5 | 190.5 | 200 | 200 | 399 | 430 | 215 | 200 | 150 | 6000 |
| 150 | Φ159×5 | 2,286 | 235 | 235 | 477 | 510 | 255 | 220 | 160 | 6000 |
| 200 | Φ219×6 | 304.87 | 315 | 140 | 600 | 600 | 300 | 260 | 170 | 6000 |
| 250 | Φ273×7 | 381.0 | 390 | 170 | 750 | 750 | 375 | 300 | 200 | 6000 |
| 300 | Φ325×8 | 457.2 | 470 | 200 | 900 | 900 | 450 | 340 | 220 | 6000 |
| 350 | Φ377×8 | 533.4 | 545 | 235 | 1050 | 1050 | 525 | 365 | 350 | 6000 |
| 400 | Φ426×8 | 609.6 | 620 | 265 | 1200 | 1200 | 600 | 400 | 380 | 6000 |
| 450 | Φ480×8 | 685.8 | 700 | 295 | 1350 | 1350 | 675 | 430 | 400 | 6000 |
| 500 | Φ530×8 | 762 | 775 | 330 | 1500 | 1500 | 750 | 470 | 600 | 6000 |
| 600 | Φ630×8(rolling) | 914 | 925 | 390 | 1800 | 1800 | 900 | 600 | 700 | 9000 |
| 700 | Φ720×8(rolling) | 1050 | 1050 | 445 | 2100 | 2100 | 1050 | 700 | 700 | 9000 |
| 800 | Φ820×8(rolling) | 1200 | 1200 | 510 | 2400 | 2400 | 1200 | 700 | 800 | 9000 |
| 900 | Φ920×8(rolling) | 1350 | 1350 | 570 | 2700 | 2700 | 1350 | 800 | 900 | 9000 |
| 1000 | Φ1020x8(roling) | 1500 | 1500 | 630 | 3000 | 3000 | 1500 | 800 | 900 | 9000 |
| 1100 | Φ1120×10(rolling) | 1650 | 1650 | 695 | - | - | - | 900 | 900 | 9000 |
| 1200 | Φ1220×10(rolling) | 1800 | 1800 | 760 | - | - | - | 1000 | 1000 | 9000 |
| 1300 | Φ1320×12(rolling) | 1350 | 1350 | 570 | - | - | - | 1100 | 1000 | 9000 |
| 1400 | Φ1420×12(rolling) | 1450 | 1450 | 810 | - | - | - | 1200 | 1100 | 9000 |
| 1600 | Φ1620×14(rolling) | 1650 | 1650 | 705 | - | - | - | 1400 | 1100 | 9000 |
| 1800 | Φ1820×16(rolling) | 1850 | 1850 | 790 | - | - | - | 1500 | 1200 | 9000 |
| 2000 | Φ2020×16(rolling | 2050 | 2050 | 870 | - | - | - | 1500 | 1200 | 9000 |
Packing and Shipping:
Product Packaging for Rubber Lined Pipe:
Each rubber lined pipe is carefully packaged to ensure its
integrity during transit. The pipes are individually wrapped in
protective material to prevent any scratches or damage to the
rubber lining. The ends of the pipes are capped with plastic covers
to keep out dirt and debris. Once wrapped, the pipes are secured in
sturdy wooden crates or pallets, reinforced to withstand handling
and shipping stresses. The crates are clearly labeled with handling
instructions, product details, and a barcode for easy tracking.
Shipping Instructions for Rubber Lined Pipe:
The rubber lined pipes are shipped via commercial freight carriers
to ensure a timely and safe delivery. Prior to dispatch, all
necessary documentation, including shipping manifests, bills of
lading, and export paperwork (if applicable), will be completed and
attached to the shipment. The crates are loaded onto the freight
vehicle using appropriate lifting equipment and are secured in
place to prevent movement during transportation. Upon arrival, the
recipient must inspect the crates for any external damage before
accepting the delivery. Any damage should be reported immediately
to the carrier and noted on the delivery receipt.
FAQ:
Q1: What is the brand name of the rubber lined pipe you offer?
A1: The brand name of our rubber lined pipe is liwei.
Q2: Can I define the model number for a rubber lined pipe order?
A2: Yes, you can define the model number for your order according to
your specifications.
Q3: What are the payment terms for purchasing liwei rubber lined
pipes?
A3: The payment terms we accept include T/T, Western Union, L/C, D/A,
and MoneyGram.
Q4: What is the price for liwei rubber lined pipes?
A4: The price for our rubber lined pipes is negotiable. Please contact
us for specific pricing based on your order details.
Q5: What is the supply ability for liwei rubber lined pipes per
month?
A5: We have the capability to supply 1500 tons of rubber lined pipes
per month.
