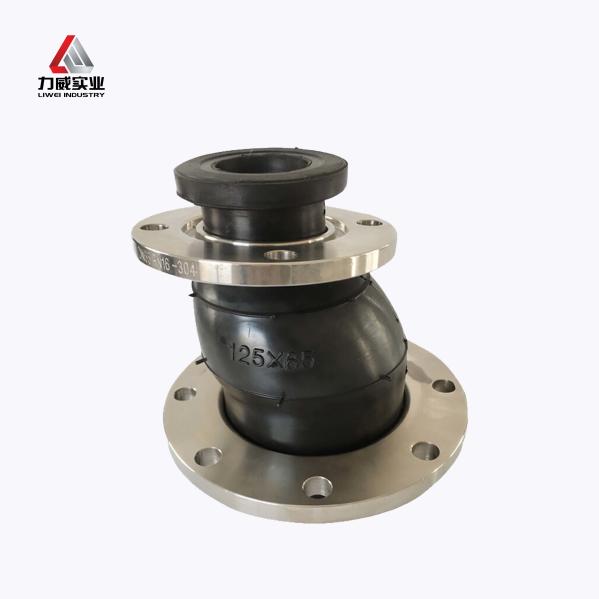

EPDM/NBR/NR Eccentric Reducing Rubber Joint Vibration Resistant for
Various Industries
Eccentric reducing rubber joint Product Description:
Eccentric reducer rubber joint is a high-quality pipeline component
designed based on pipeline components, specifically designed for
general applications in various industries. This innovative product
is the fundamental solution for a system that requires reliable and
effective compensation for lateral, axial, and angular motion
caused by thermal expansion, contraction, or other dynamic forces
inside pipelines. The unique eccentric design allows for smooth
transition of pipe diameter, adapts to different flow rates, and
reduces turbulence within the system.
Features:
Compared with mechanical expansion and packing vibration reduction,
it occupies small space, light weight, easy to install and
disassemble, saving labor and low cost.
For the same ultimate capacity, there is no need to increase the
pump and pipe diameter, the inner wall is smooth, reduce the flow
resistance, and will not damage the pipe body.
It has good watertightness and does not need to be padded during
installation.
Wide range of application: Select different rubber formulations to
make the product with heat resistance, oil resistance, corrosion
resistance, aging resistance, wear resistance, ozone resistance and
other properties.
Long service life: This product can generally be used indoors for
more than 20 years.
Technical Parameters:
| Main connecting dimension |
Nominal
diameter | Length
(mm) | Technical parameters | Technical parameters |
| D | D₀ | n-Φ | D | D₀ | n-Φ |
| 100×80 | 180 | 220 | 180 | 8-Φ18 | 200 | 160 | 8-Φ18 |
| 150×80 | 200 | 285 | 240 | 8-Φ22 | 200 | 160 | 8-Φ18 |
| 150×100 | 200 | 285 | 240 | 8-Φ22 | 220 | 180 | 8-Φ18 |
| 150×125 | 200 | 280 | 240 | 8-Φ22 | 250 | 210 | 8-Φ18 |
| 200×100 | 200 | 340 | 295 | 8-Φ22 | 220 | 180 | 8-Φ18 |
| 200×150 | 220 | 340 | 295 | 8-Φ22 | 280 | 240 | 8-Φ18 |
| 250×100 | 220 | 395 | 350 | 12-Φ22 | 220 | 180 | 8-Φ18 |
| 250×125 | 220 | 395 | 350 | 12-Φ22 | 250 | 210 | 8-Φ18 |
| 250×150 | 220 | 395 | 350 | 12-Φ22 | 285 | 240 | 8-Φ22 |
| 250×200 | 220 | 395 | 350 | 12-φ22 | 340 | 295 | 8-Φ22 |
| 300×125 | 280 | 445 | 400 | 12-Φ22 | 250 | 210 | 8-Φ18 |
| 300×150 | 220 | 445 | 400 | 12-Φ22 | 285 | 240 | 8-Φ18 |
| 300×200 | 180 | 445 | 400 | 12-Φ22 | 340 | 295 | 8-Φ22 |
| 300×250 | 220 | 445 | 400 | 12-Φ22 | 395 | 350 | 12-Φ22 |
| 350×125 | 255 | 505 | 460 | 16-Φ22 | 250 | 210 | 8-Φ18 |
| 350×200 | 220 | 505 | 460 | 16-Φ22 | 340 | 295 | 8-Φ18 |
| 350×300 | 220 | 505 | 460 | 16-Φ22 | 445 | 400 | 12-Φ22 |
| 400×200 | 220 | 565 | 515 | 16-Φ22 | 340 | 295 | 8-Φ22 |
| 400×250 | 220 | 565 | 515 | 16-Φ22 | 395 | 350 | 12-Φ22 |
| 400×300 | 220 | 565 | 515 | 16-Φ22 | 445 | 400 | 12-Φ22 |
| 450×200 | 220 | 615 | 565 | 20-Φ26 | 340 | 295 | 8-Φ22 |
| 450×250 | 220 | 615 | 565 | 20-Φ26 | 395 | 350 | 12-Φ22 |
| 500×300 | 255 | 670 | 620 | 20-Φ26 | 445 | 400 | 12-Φ22 |
| • Special size and length can be customized for you. |
Applications:
Liwei provides the drawings required for the eccentric reducer
rubber joint, which simplifies the installation process for the
customer. Operating temperature range -15℃~ 80℃(there are special
models can handle -30℃~ 150℃), can be used in different thermal
conditions in the environment. This makes eccentric reducing rubber
joints an excellent choice for heating and cooling systems,
industrial processing plants, water and wastewater treatment
facilities, and many other temperature fluctuation factors.
Support and Services:
Delivery inspection (pressure test, specification test, material,
quantity, packing.
The quality is guaranteed for 12 months, supportthird-party
testing.
Free solutions and drawings can be provided.
A well-trained and disciplined professional packaging team.
24h online service, quick response before and after sales.
Support online factory inspection.
On-time delivery.
Free samples can be provided.
FAQ:
Q1: What is the model range available for the Liwei Eccentric
Reducing Rubber Joint?
A1: The available model numbers for the Liwei Eccentric Reducing
Rubber Joint range from DN100*DN80 to DN500*DN300, catering to
various pipe size requirements.
Q2: What certifications does the Liwei Eccentric Reducing Rubber
Joint hold?
A2: The Liwei Eccentric Reducing Rubber Joint is certified with
ISO9001, TUV, WRAS, CO, MTC, PL, IV, etc., ensuring its compliance
with international quality and safety standards.
Q3: What is the minimum order quantity for the Liwei Eccentric
Reducing Rubber Joint, and how is it packaged?
A3: The minimum order quantity is 1 set. For packaging, it is secured
with inner plastic film and an outer wooden case. If multiple
compensators are packed in one case, a steel frame is used for
fixation to ensure safe delivery.
Q4: What are the payment terms and delivery time for the Liwei
Eccentric Reducing Rubber Joint?
A4: Payment can be made via T/T, Western Union, L/C, D/A, MoneyGram.
The delivery time is within 15-30 working days after payment is
received.
Q5: Can I visit your factory before the order?
A5: Yes, welcome to our factory to check the quality.
