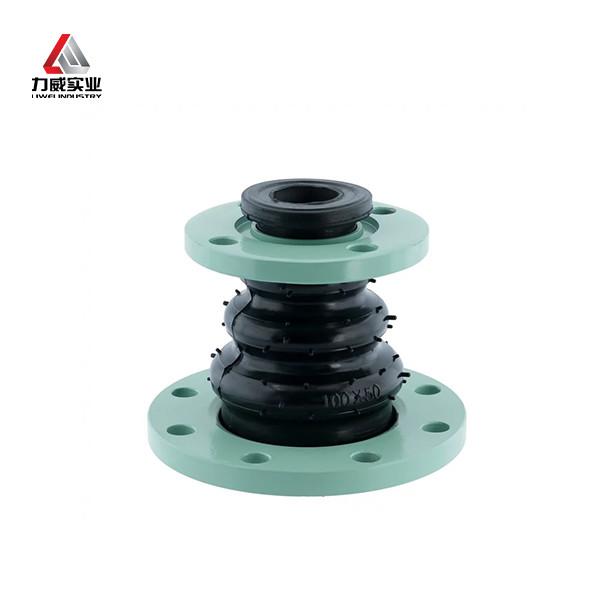

Concentric reducing rubber joint description:
The liwei Concentric reducer rubber joint is a versatile and
essential component in various piping systems, designed to connect
pipes of different diameters in a seamless and efficient manner. This product ensures a smooth transition between different pipe
sizes, enabling the control of flow rates and the reduction of
turbulent fluid delivery, which is critical in maintaining the
integrity of the piping system. The installation of the product can be done in both horizontal and
vertical orientations, providing flexibility and ease of use in a
variety of settings.
Product Material:
| No | Name | Material |
| 1 | Outer/inner rubber | NR, EPDM, NBR,FKM,Neoprene etc. |
| 2 | Freme | Nylon cord fabric |
| 3 | Pressurized ring | Steel wire strand |
| 4 | Flange | Carbon steel galvanized,paint ductile iron,stainless steel etc. |
Customization:
Structure of product:Inner and outer rubber,nylon cord fabric,steel wire and flange
Rubber raw material:NR,NBR,SBR,EPDM,FKM,etc.(According to your needs)
Flange material:SS304,SS316,carbon steel, ductile iron,etc(According to your needs)
Size:DN15-DN4000
Length:customizable
Flange color:customizable
Standard of flange:DIN, BS, ANSI, JIS,ISO,etc.
Technical Parameters:
| DNmax×DNmin | Length
(mm) | Axial displacemen | Horizontal
movement
(mm) | Deflection
angle
(a1+a₂) | DNmax×DNmin | Length
(mm) | Axial displacement | Horizontal
movement
(mm) | Deflection
angle
(a1+a₂) |
|
Extension
(mm) | Compression
(mm) | Extension
(mm) | Compression
(mm) |
|
| 32×25 | 115 | 20 | 30 | 45 | 35° | 125×100 | 200 | 22 | 30 | 40 | 35° |
| 40×25 | 115 | 20 | 30 | 45 | 35° | 150×50 | 200 | 22 | 30 | 40 | 35° |
| 40×32 | 115 | 20 | 30 | 45 | 35° | 150×125 | 200 | 25 | 35 | 40 | 30° |
| 50×32 | 180 | 20 | 30 | 45 | 35° | 200×80 | 200 | 25 | 35 | 40 | 30° |
| 50×40 | 180 | 20 | 30 | 45 | 35° | 200×150 | 200 | 25 | 35 | 40 | 30° |
| 65×32 | 180 | 20 | 30 | 45 | 35° | 250×100 | 220 | 25 | 35 | 40 | 30° |
| 65×50 | 180 | 20 | 30 | 45 | 35° | 300×250 | 220 | 25 | 35 | 40 | 30° |
| 80×40 | 180 | 20 | 30 | 45 | 35° | 350×300 | 240 | 25 | 35 | 35 | 30° |
| 80×65 | 180 | 20 | 30 | 45 | 35° | 400×350 | 240 | 25 | 38 | 35 | 30° |
| 100×40 | 180 | 22 | 30 | 40 | 35° | 500×300 | 240 | 28 | 38 | 35 | 26° |
| 100×80 | 180 | 22 | 30 | 40 | 35° | 500x400 | 240 | 28 | 38 | 35 | 26° |
| 125×5 | 180 | 22 | 30 | 40 | 35° | 600*400 | 240 | 28 | 38 | 35 | 26° |
|
| • Special size and length can be customized for you. |
Applications:
Due to favorable integrated performance, they can be widely used in
chemical industry, Construction, water supply, drainage, oil
industry, light and heavy industry, refrigeration station, water
heating system, fire fighting system, electric power system, etc.
Packing and Shipping:
- The Concentric Reducing Rubber Joint will be securely packaged in a
robust, corrugated cardboard box to ensure the product remains
undamaged during transit. The box will be sealed with heavy-duty
packing tape and properly labeled with handling instructions and
product information.
- Each joint will be individually wrapped in a layer of protective
bubble wrap to cushion against impacts. This will be followed by an
additional layer of foam padding to provide extra protection for
the product's unique shape and to prevent movement within the box
during shipping.
- The exterior of the packaging will clearly display the necessary
shipping labels, including a fragile item sticker to prompt careful
handling by the carrier. The package will also include a detailed
packing slip with product specifications and a barcode for easy
tracking and inventory management.
- All shipments will be dispatched through a reliable courier service
with a proven track record for handling industrial components.
Tracking information will be provided upon dispatch, allowing both
the sender and recipient to monitor the shipment's progress until
delivery.
FAQ:
Q: What brand is the Concentric reducing rubber joint and where is
it manufactured?
A: The Concentric reducing rubber joint is by the brand liwei and it
is manufactured in Henan, China.
Q: What certifications does the liwei Concentric reducing rubber
joint hold?
A: The liwei Concentric reducing rubber joint holds several
certifications including ISO9001, TUV, WRAS, CO, MTC, PL, IV, and
others.
Q: What is the minimum order quantity and price for the liwei
Concentric reducing rubber joint?
A: The minimum order quantity for the liwei Concentric reducing
rubber joint is 1 set, and the price is negotiable.
Q: Can you provide the details on packaging, delivery time, and
payment terms for the Concentric reducing rubber joint?
A: The Concentric reducing rubber joint is packaged with inner
plastic film and an outer wooden case. If multiple compensators are
packed in one case, a steel frame is used to fix them. After the
payment is processed, the delivery time is 15-30 working days.
Payment terms include T/T, Western Union, L/C, D/A, and MoneyGram.
Q: How many pieces of the Concentric reducing rubber joint can
liwei supply per month?
A: liwei can supply up to 100,000 pieces of the Concentric reducing
rubber joint per month.
