Product Description:

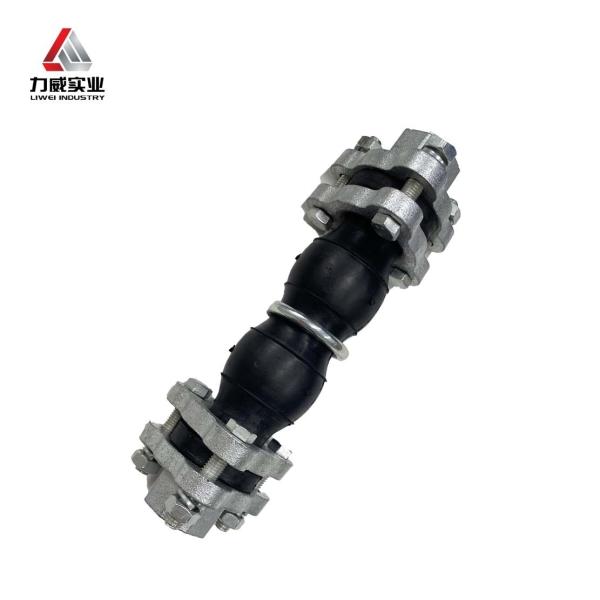

Double Sphere Flexible Rubber Joint consists of outer rubber, inner rubber, framework layer, and
reinforcing bar and flange. Relying on rubber’s special
performances as long range elasticity, air impermeability, medium,
climate and radiation resistance, rubber expansion couplings can
reduce the vibration and noise of pipeline, and can be caused by
the temperature change of heat bilges cold shrink compensation
effect.
Technical Parameters:
Diameter
DN | Length
mm | Axis displacement | Radial
displacement | Deflexion
displacement |
| TYPE 1 | TYPE 2 |
| mm | inch | Extension | Compression | Extension | Comgression | TYPE 1 | TYPE 2 | TYPE1 | TYPF 2 |
| 32 | 11/4" | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 40 | 11/2” | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 50 | 2" | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 65 | 21/2” | 175 | 30 | 50 | | | 45 | | ±7.5° | |
| 80 | 3" | 175 | 30 | 50 | | | 45 | | ±7.5° | |
| 100 | 4" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 125 | 5" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 150 | 6" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 200 | 8" | 325 | 35 | 60 | | | | | | |
| 250 | 10" | 325 | 35 | 60 | | | | | | |
| 300 | 12" | 325 | 35 | 60 | | | | | | |
| 350 | 14" | 325 | 35 | 60 | | | | | | |
| 400 | 16" | 400 | 40 | 60 | | | | | | |
| 450 | 18" | 400 | | | 65 | 70 | | 70 | | ±12° |
| 500 | 20" | 400 | | | 65 | 70 | | 70 | | ±12° |
| 600 | 24" | 400 | | | 70 | 75 | | 75 | | ±12° |
| 700 | 28" | 400 | | | 70 | 75 | | 75 | | ±12° |
| 800 | 32" | 450 | | | 70 | 75 | | 75 | | ±12° |
| 900 | 36" | 450 | | | 70 | 75 | | 75 | | ±12° |
| 1000 | 40" | 450 | | | 75 | 80 | | 70 | | ±12° |
| 1200 | 48" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1400 | 56" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1600 | 64" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1800 | 72" | 500 | | | 80 | 85 | | 65 | | ±10° |
| 2000 | 80" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2200 | 88" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2400 | 96" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2600 | 104" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2800 | 112" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 3000 | 120" | 550 | | | 80 | 85 | | 65 | | ±10 |
| • Special size and length can be customized for you. |
Applications:
Air Conditioning System
Air ducts, chemical lines
Circulating water lines
Compressor lines, paper stock lines
Pump-suction and discharge
Refrigeration lines
Turbine to condenser
Features:
Compared with mechanical expansion and packing vibration reduction,
it occupies small space, light weight, easy to install and
disassemble, saving labor and low cost.
For the same ultimate capacity, there is no need to increase the
pump and pipe diameter, the inner wall is smooth, reduce the flow
resistance, and will not damage the pipe body.
It has good watertightness and does not need to be padded during
installation.
Wide range of application: Select different rubber formulations to
make the product with heat resistance, oil resistance, corrosion
resistance, aging resistance, wear resistance, ozone resistance and
other properties.
Long service life: This product can generally be used indoors for
more than 20 years.
